RIP Oil/SF6 bushing


  • Product Item:POGRWL
  • Rated voltage: 40.5KV-800KV
  • Rated current: 630A-4000A
  • Partial discharge at 1.2Um/√3 (pC): ≤5
  • Test tap insulation test (KV): 2
  • resin impregnated paper bushing  , RIP bushing  , high voltage bushing  , dry type of Oil SF6 bushing
    Inquiry Send Email

    Description

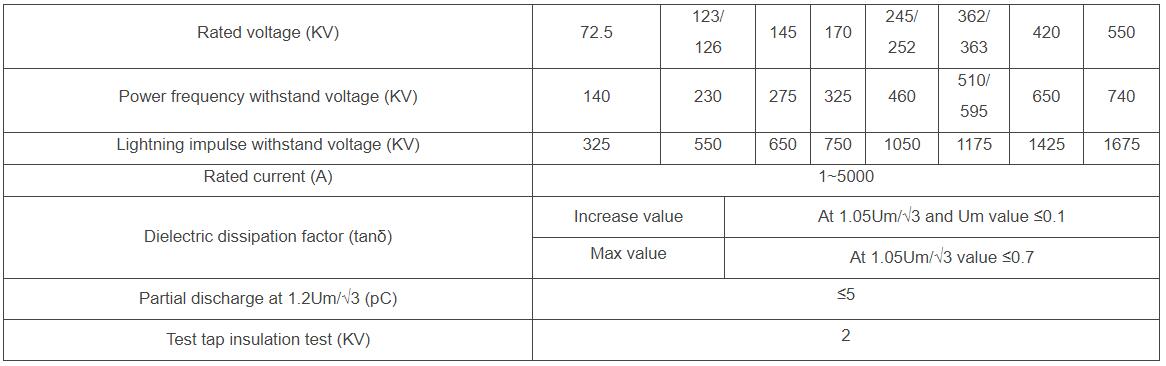

    RIP Condenser Dry-Type Oil/SF6 Bushing Electrical specification

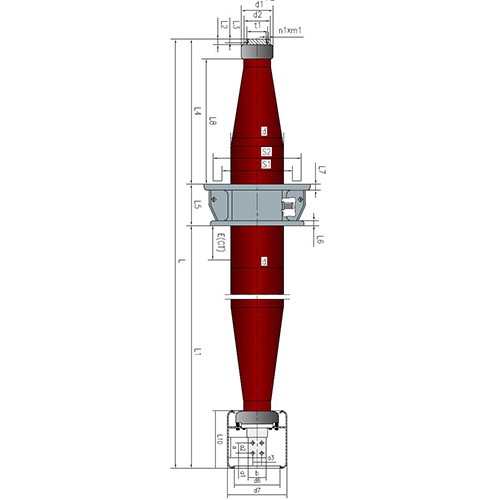

    Structure

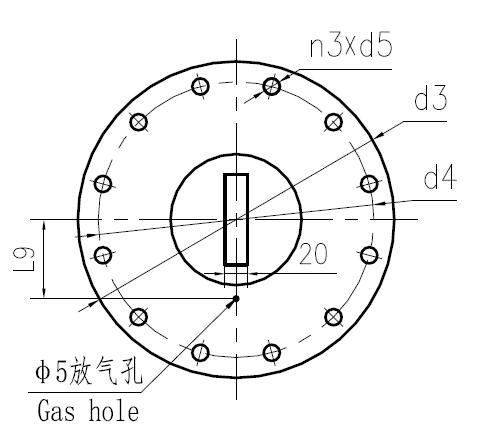

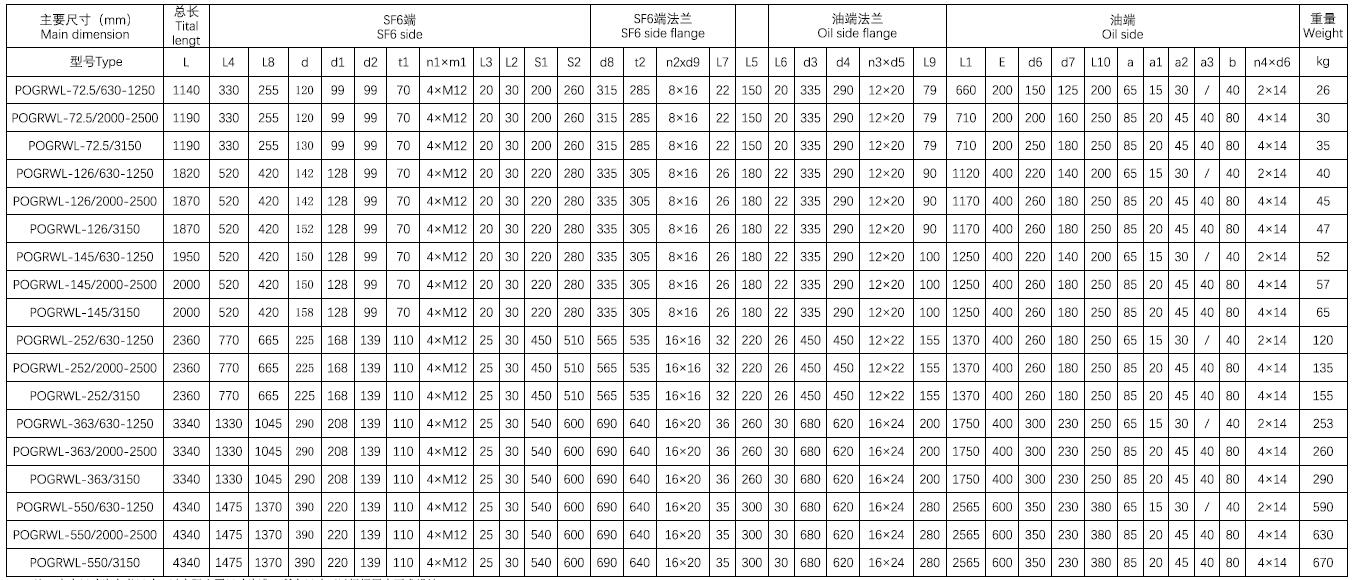

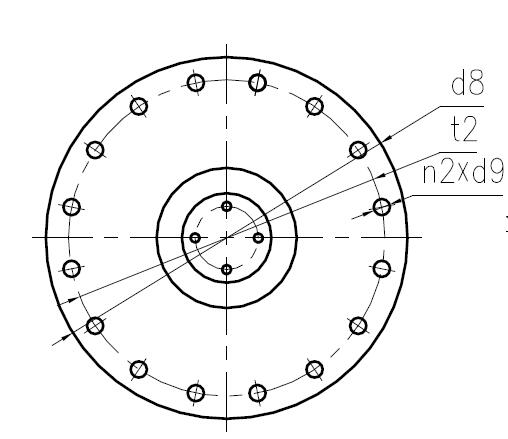

    Dimension



     Note:The dimension in the catalog is the recommended value, we also provide custom design service.
