RIP transformer bushing


  • Product Item:FPBRWL
  • AC voltage: 24KV-1100KV
  • AC current: 630A-8000A
  • DC voltage: ±50KV-±800KV
  • DC current: 2000A-6250A
  • resin impregnated paper bushings  , RIP bushing  , high voltage bushing  , dry type of transformer bushing
    Inquiry Send Email

    Description

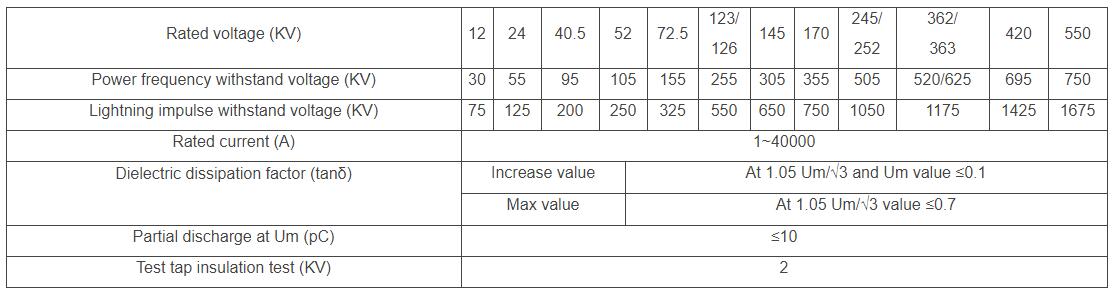

    RIP Condenser Dry-Type Transformer Bushing Electrical specification


    Structure

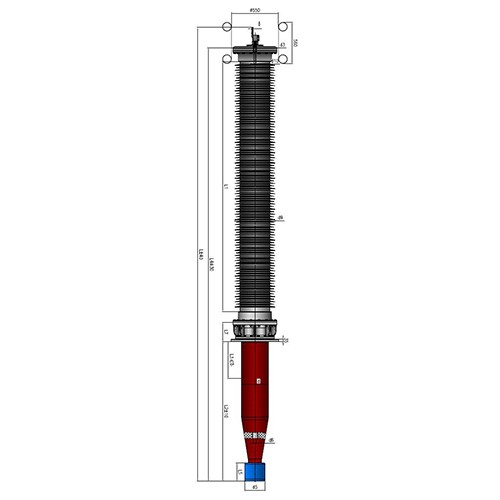

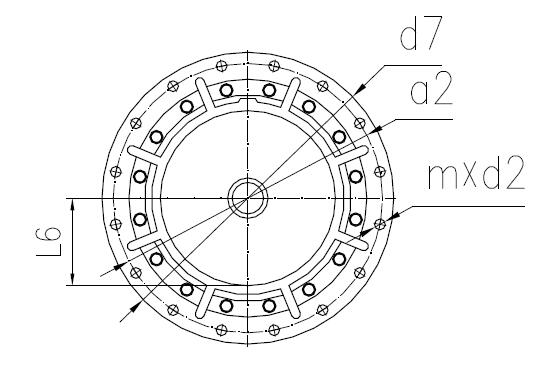

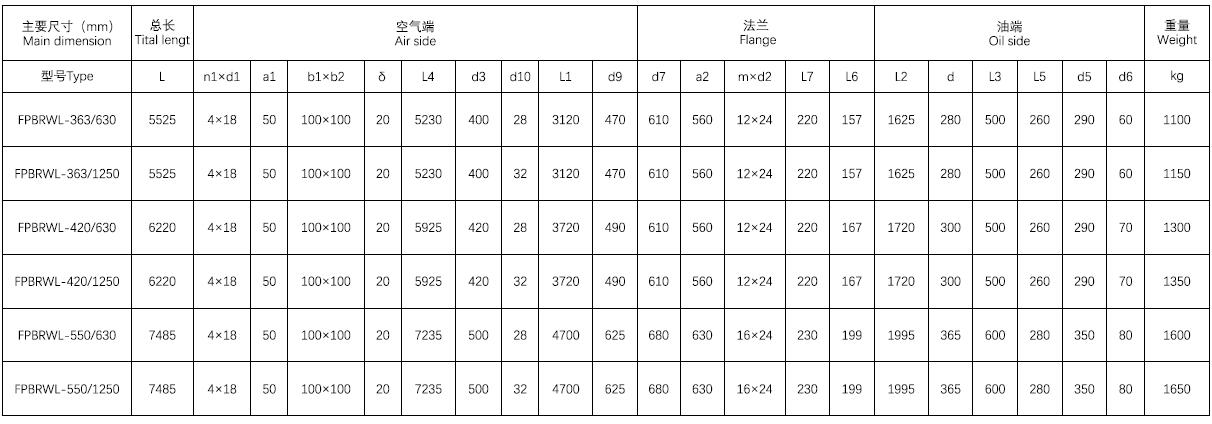

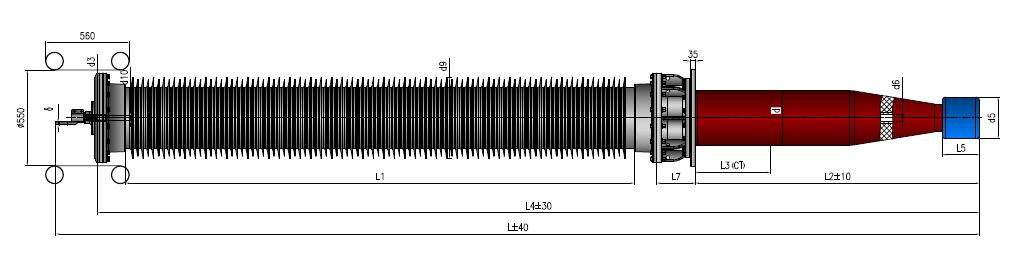

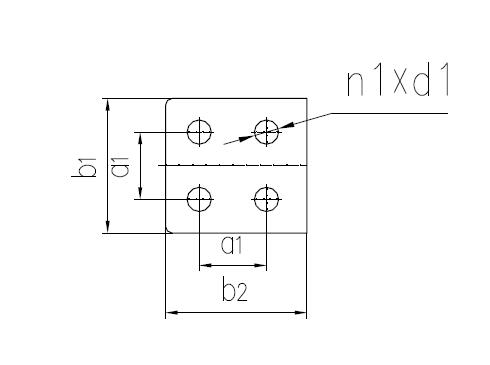

    Dimension



    Note: The dimension in the catalog is the recommended value, we also provide custom design service.
