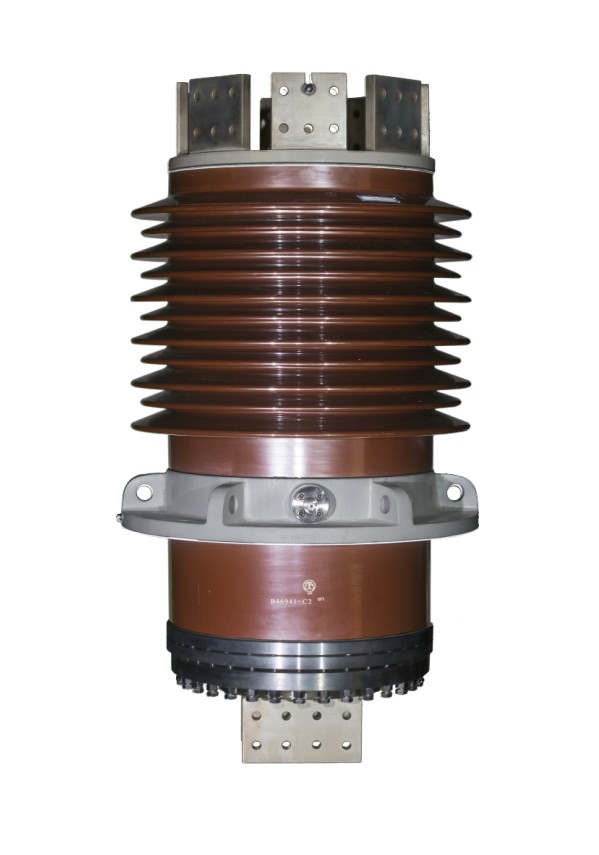

RIF/RIS High current bushing


  • Product Item:EBRW
  • Rated voltage: 12kV-40.5kV
  • Rated current: 10000A-40000A
  • Partial discharge at Um (pC): ≤10
  • Test tap insulation test (KV): 2
  • resin impregnated fiber bushings  , RIF bushings  , high voltage bushings  , dry type of large current bushings
    Inquiry Send Email

    Description

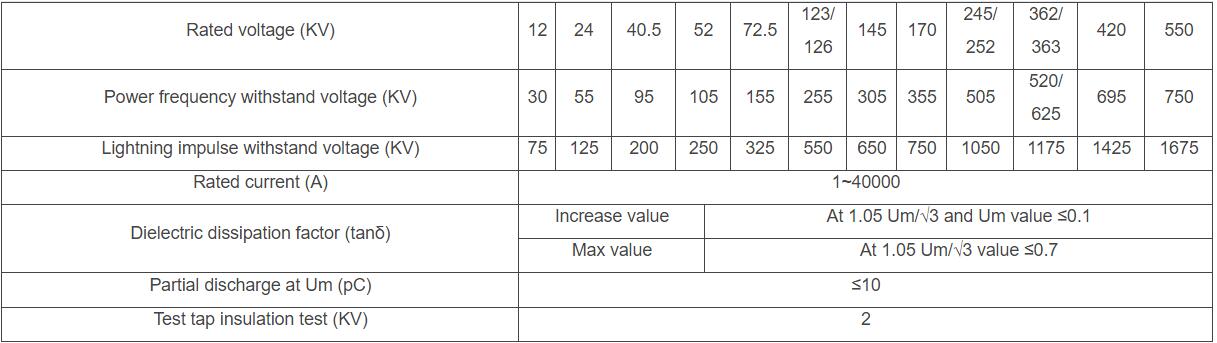

    RIF Condenser Dry-Type Large Current Bushing Electrical specification

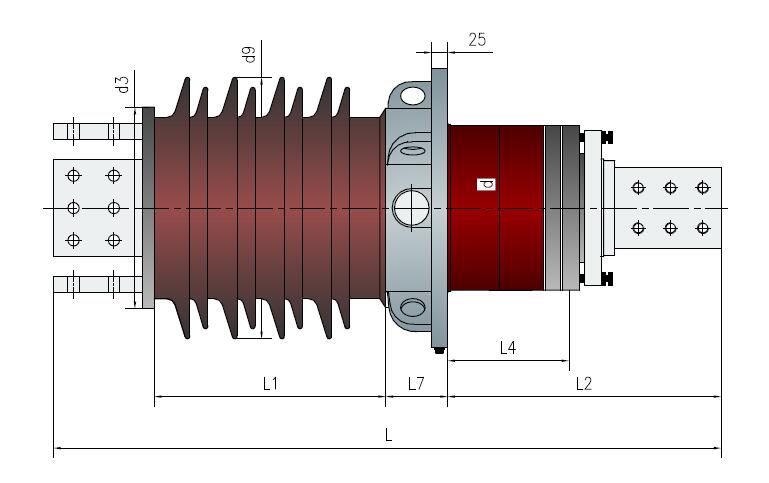

    Structure

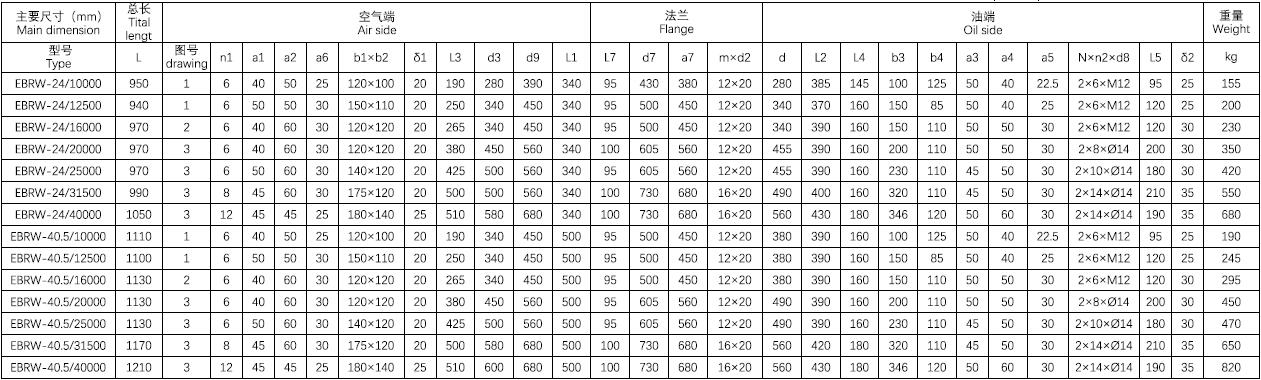

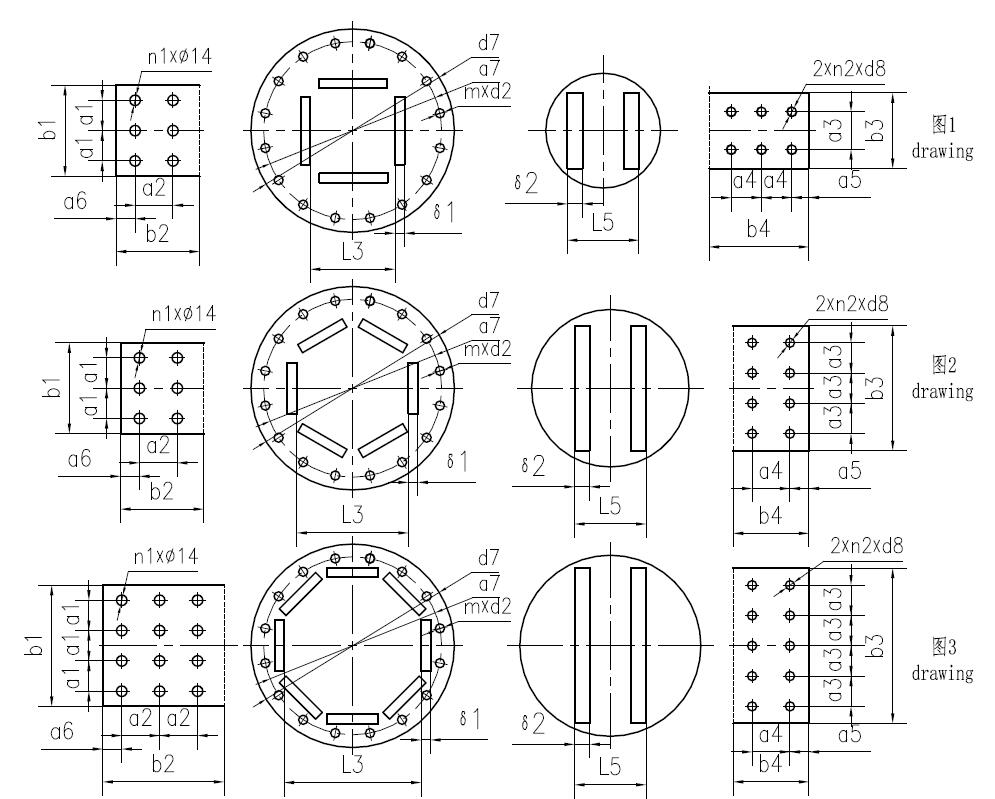

    Dimension



    Note: All product sizes can be customized to meet a customer's specific requirements.
