RIF/RIS transformer bushing


  • Product Item:EBRW
  • AC Voltage: 12KV-1200KV
  • AC Current: 630A-8000A
  • DC Voltage: ±12KV-±1200KV
  • DC current: 630A-8000A
  • resin impregnated fiber bushing  , RIF bushings  , high voltage bushing  , dry type of transformer bushing
    Inquiry Send Email

    Description

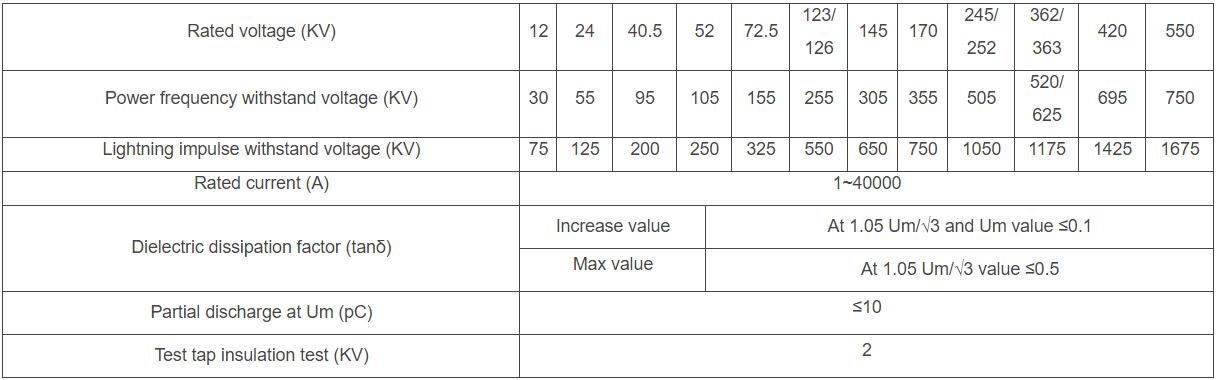

    RIF Condenser Dry-Type Transformer Bushing Electrical specification

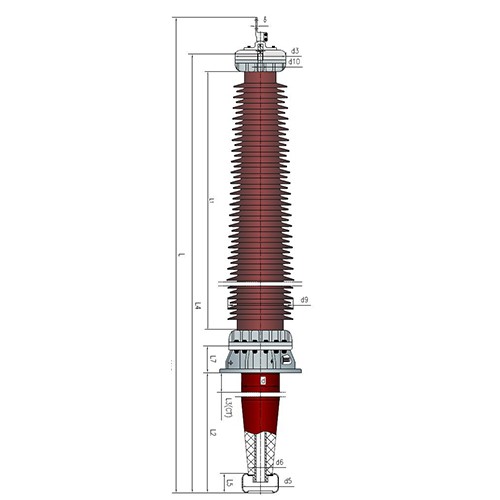

    Structure

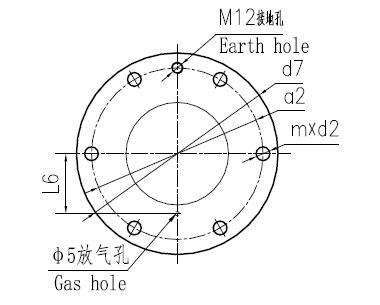

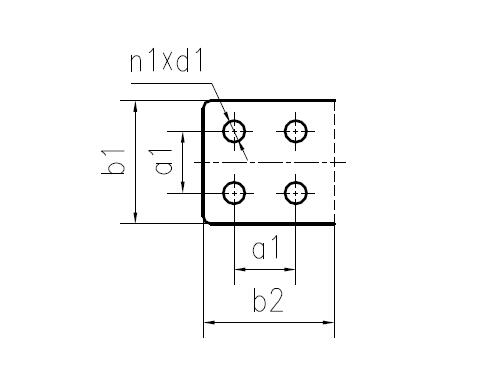

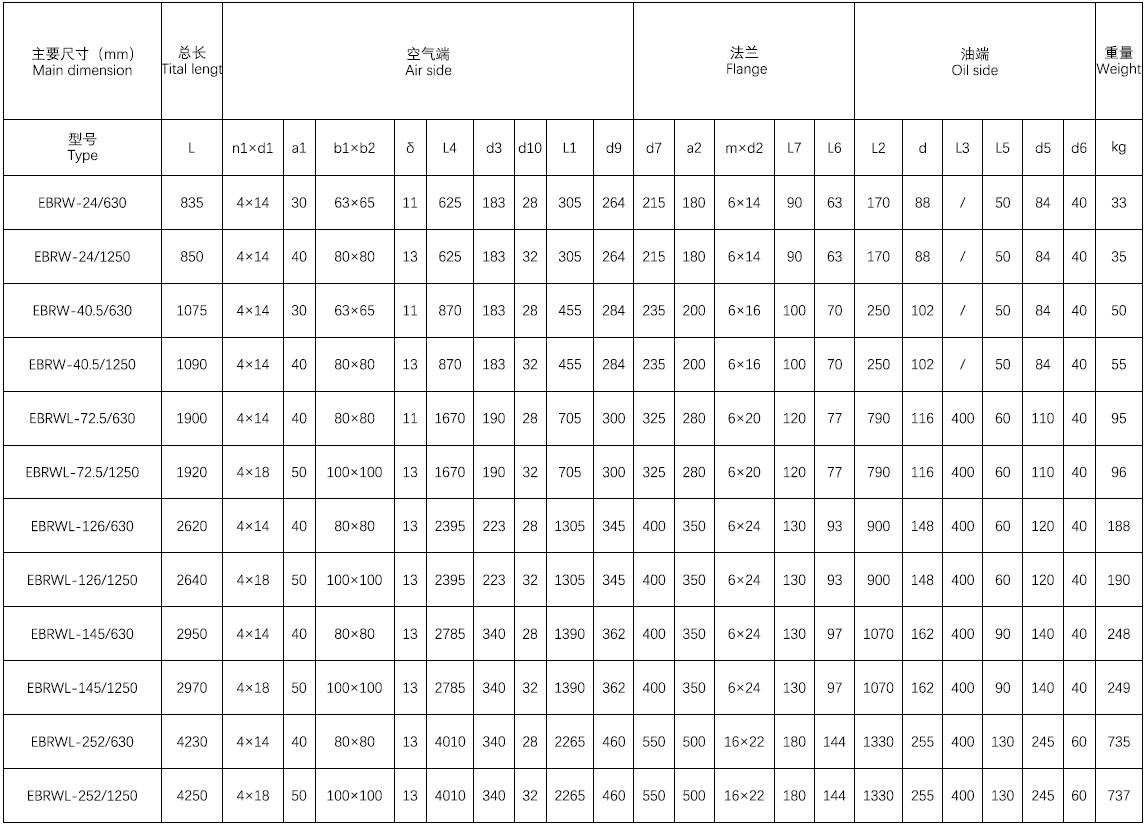

    Dimension



    Note:The dimension in the catalog is the recommended value, we also provide custom design service.
