  • RIF wall bushing



RIF wall bushing


  • Product Item:ECRW
  • AC voltage: 12KV-1100KV
  • AC current: 630A-8000A
  • DC voltage: ±50KV-±800KV
  • DC current: 2000A-6250A
  • resin impregnated fiber bushings  , RIF bushings  , high voltage bushings  , dry type of wall bushings
    Inquiry Send Email

    Description

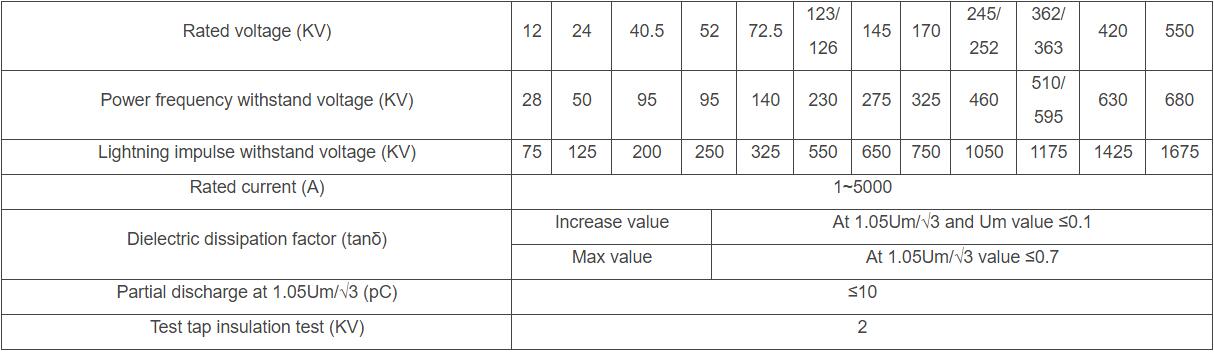

    RIF Condenser Dry-Type Wall Bushing Electrical specification

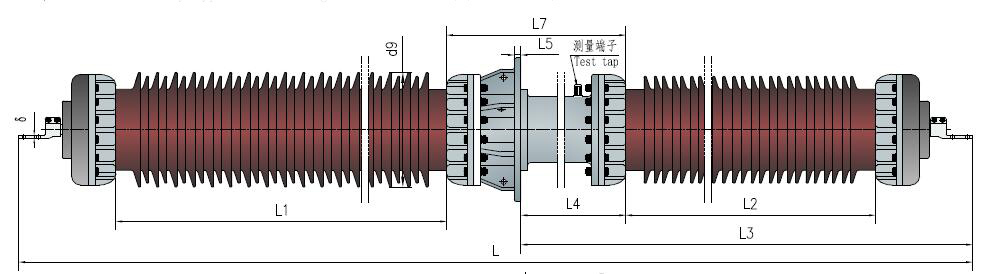

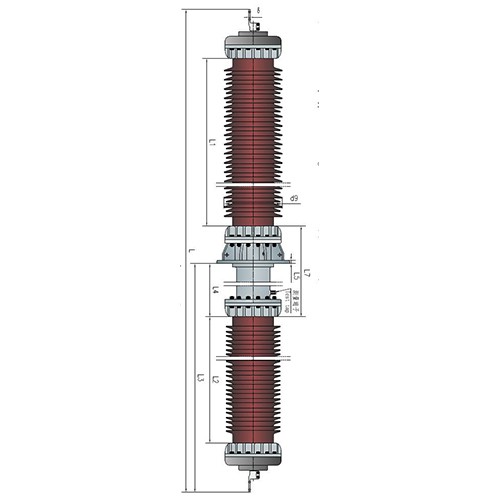

    Structure

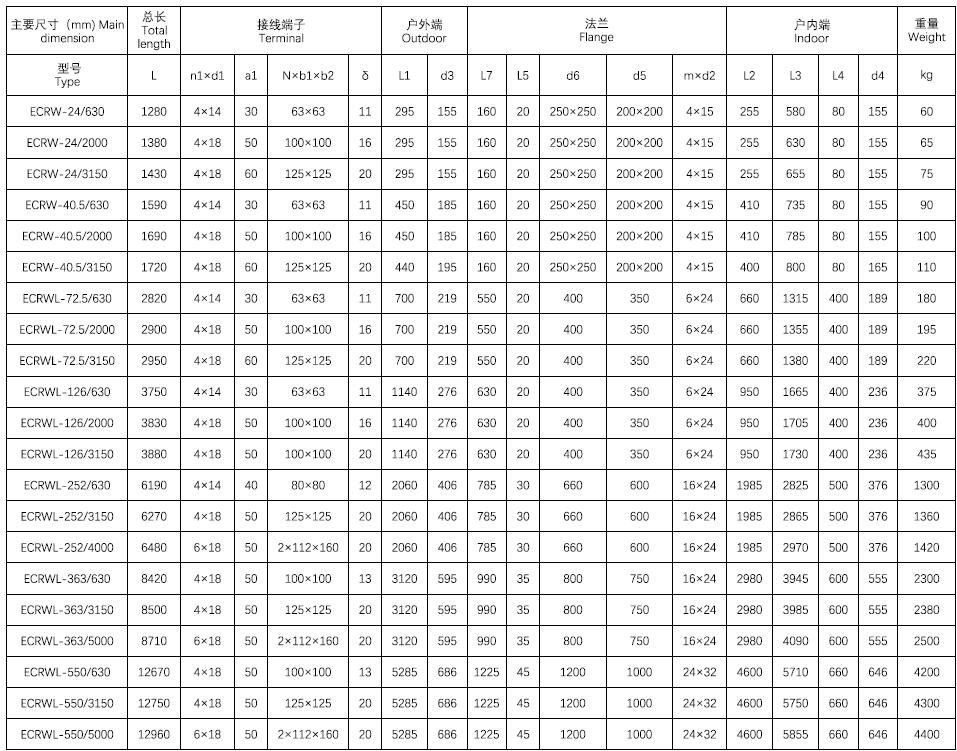

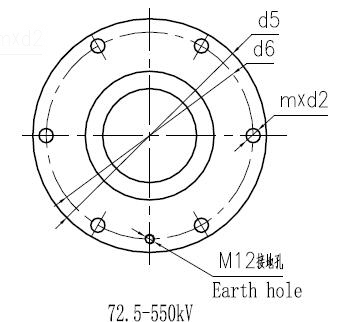

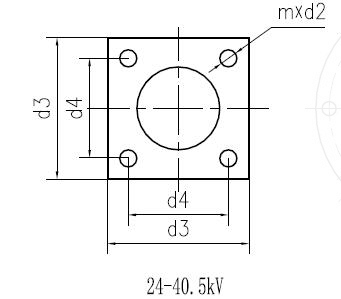

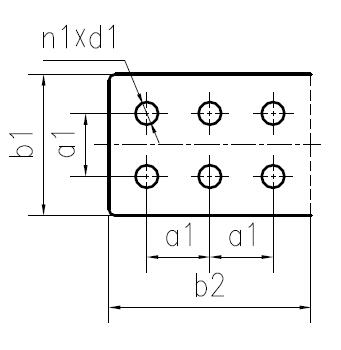

    Dimension



    Note: All product sizes can be customized to meet a customer's specific requirements.
