RIF GIS Outlet bushing


  • Product Item：EGRW
  • Rated voltage: 72.5KV-1100KV
  • Rated current: 2000A-6000A
  • Partial discharge at 1.2Um/√3 (pC): ≤5
  • Test tap insulation test (KV): 2
    • resin impregnated fiber bushings  , RIF bushings  , high voltage bushings  , dry type of GIS Outlet bushings
    Inquiry Send Email

    Description

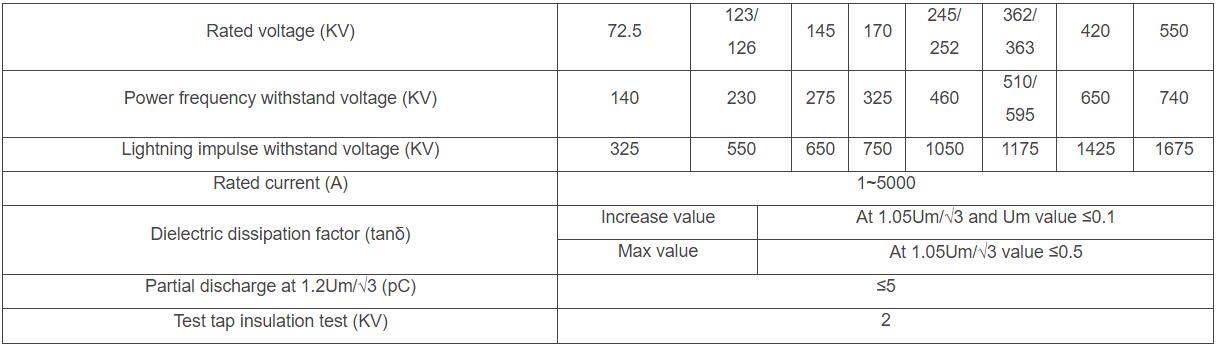

    RIF Condenser Dry-Type GIS Outlet Bushing Electrical specification

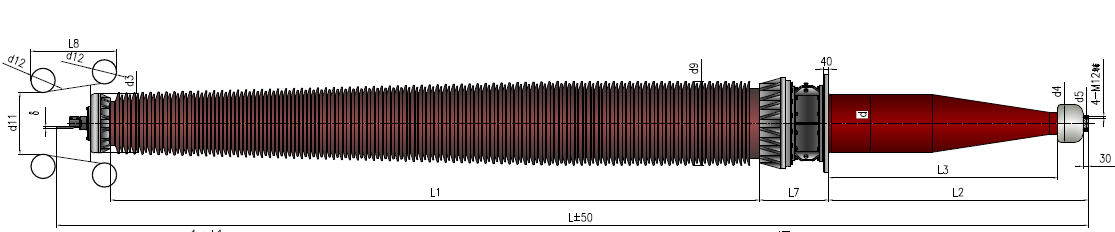

    Sructure

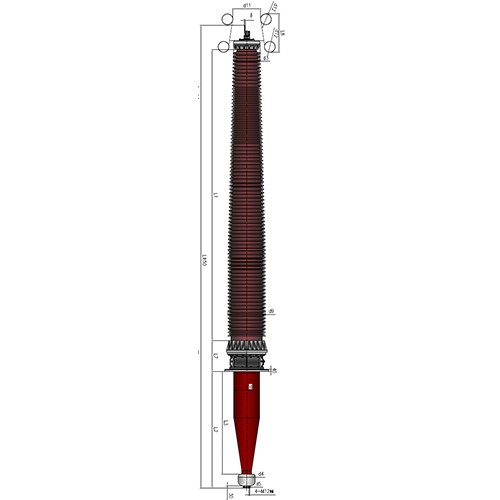

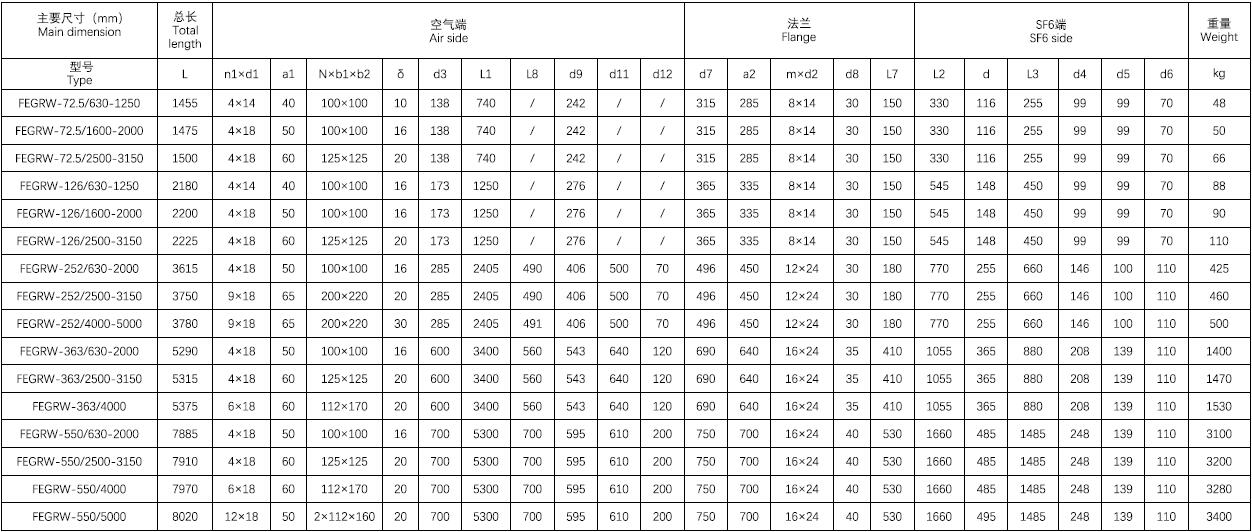

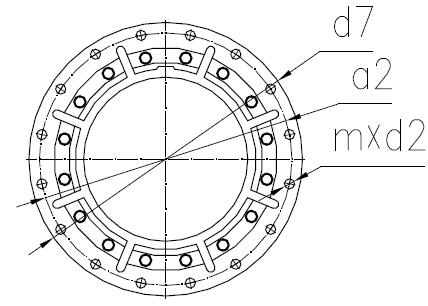

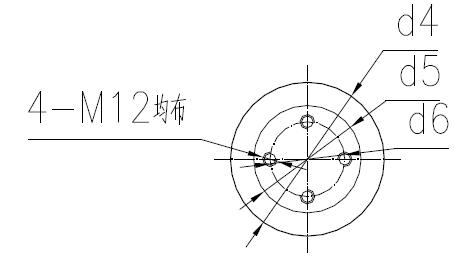

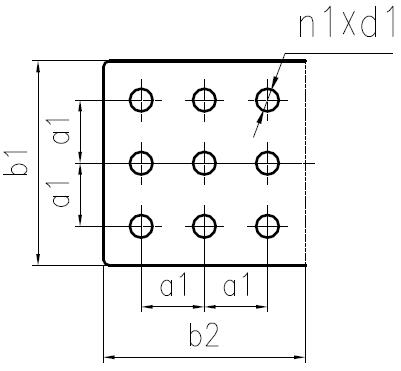

    Dimension


    Note: All product sizes can be customized to meet a customer's specific requirements.
